Precision testing, supporting 3C, solid-state battery, and battery material research.

NEWARE offers a comprehensive Battery Test Equipment, designed for high-precision battery testing and supports various application scenarios for the research of 3C battery cells, solid-state batteries, and battery materials.

In addition to standard charging/discharging test functions, it also integrates various testing functions such as EIS, DCIR, CV, and pulse simulation, meeting comprehensive testing needs.

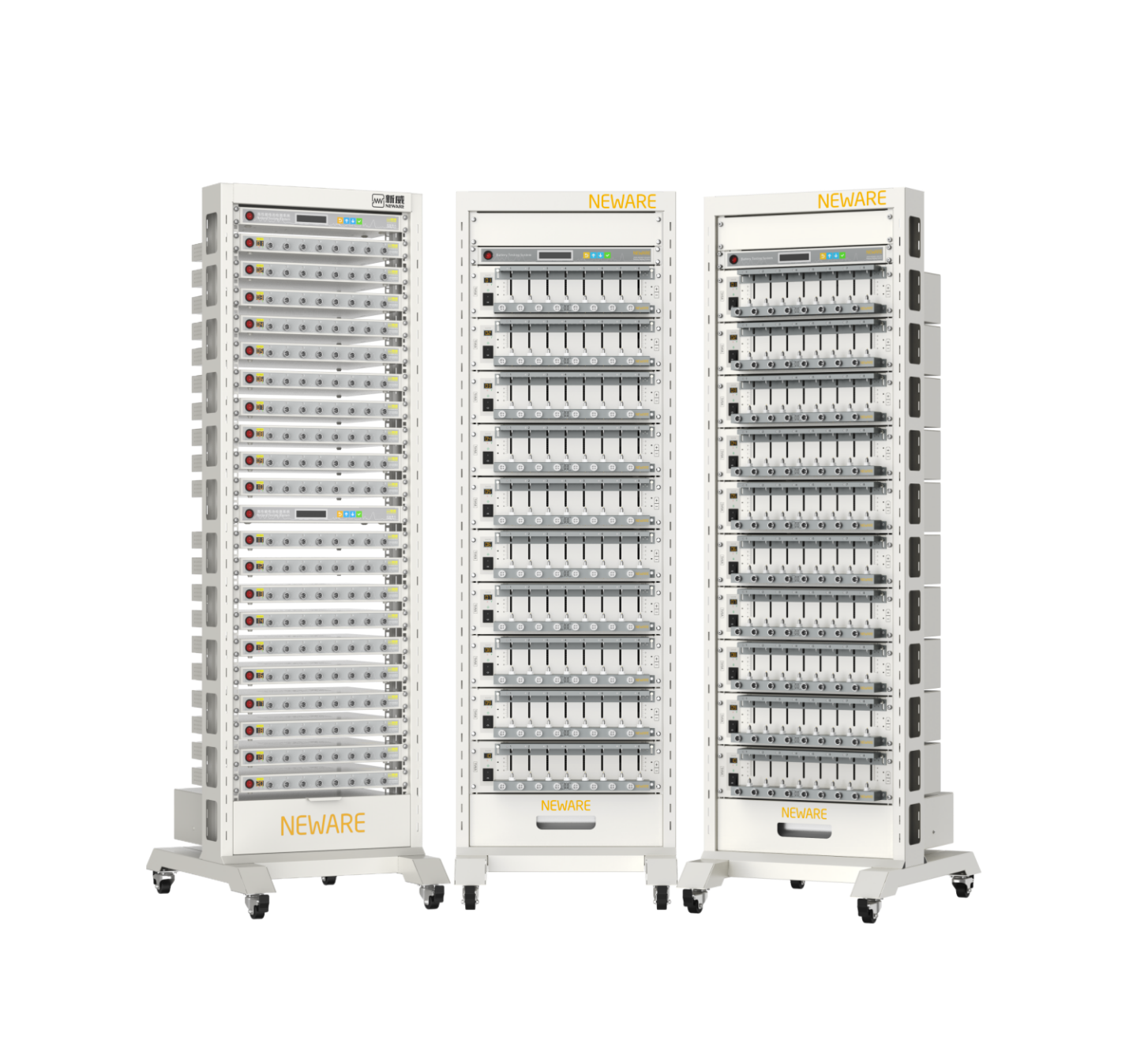

BTS-4000

Recording Frequency
10Hz

Minimum Pulse Width
500ms

Current Response Time
(10% F.S. ~ 90% F.S.)
≤1ms

Current Accuracy
±0.01% F.S.

Off-Line Test
1GB

Sampling Time
100ms

Multi-range, more precise: it adopts a four-range design, with a measurement accuracy of up to ±0.05% F.S., meeting the precise testing requirements from the microampere level (μA) to the milliampere level (mA).
Function upgraded, experience elevated: portable battery testing solution with Type-C power interface, newly added CV and EIS testing functions to meet electrochemical testing requirements.
Comprehensive testing: it supports DCIR testing (battery internal resistance testing), dQ/dV differential capacity curve analysis, pulse simulation testing, rate charge and discharge testing, and cycle life testing.
Battery temperature performance test: linked with environmental test chambers, it achieves battery temperature performance testing and conducts comprehensive performance evaluation.
Efficient energy utilization: the Series features energy recovery functionality,recovering energy from battery discharge to supply other test channels or feed back into the internal network.
*CT/CE: Battery charging-discharging test system. "E" indicates that this equipment is equipped with energy feedback function.

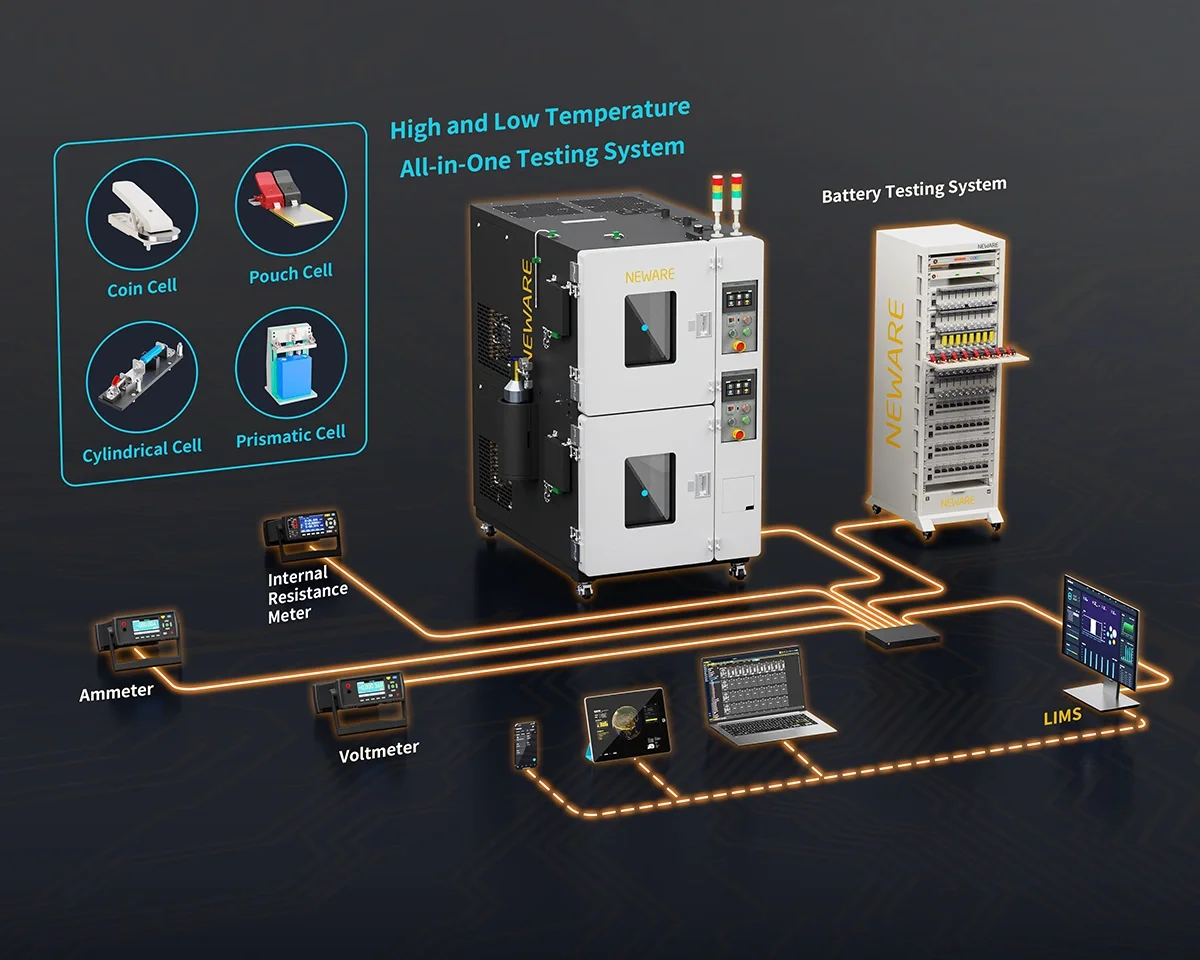

NEWARE Battery Testing System and Environmental Test Chambers work together, connecting to a central controller.
Via BTS software, they combine temperature control with battery performance testing efficiently.
· Conducts charge/discharge and temp cycle tests for accuracy.
· Centralized data management generates comprehensive reports for R&D and production.
· Graphical workflow designs handle complex scenarios like cyclic and pulse testing, plus real-world simulations.
· Multi - dimensional data analysis (cycle count, temp, SOC) with custom report templates.
