Simulate the actual driving road conditions of EV with dynamic power or current waveforms.

The series battery testing system is a high-performance testing device specifically designed for power batteries, new energy storage batteries, and consumer digital batteries. Based on NEWARE's fifth-generation testing architecture, it supports operating condition simulation, pulse charge and discharge, cycle life testing, and rate charge and discharge testing. It also integrates various testing functions such as EIS, DCIR, and CV.

It is suitable for testing requirements in fields such as electric vehicle batteries, energy storage batteries, and TWS earphone batteries, helping to optimize battery performance and improve product quality.

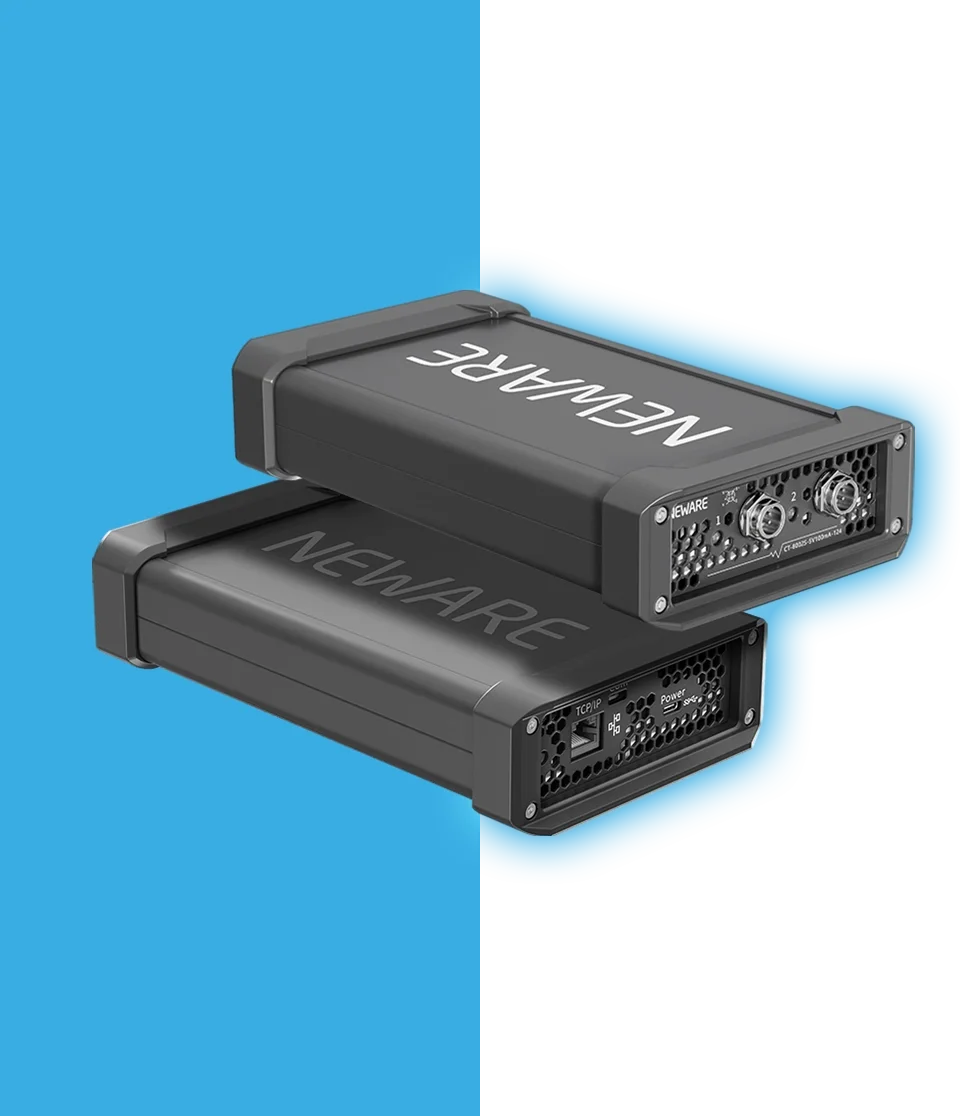

BTS-8000

Recording Frequency
100Hz

Minimum Pulse Width
100ms

Current Response Time
≤30μs

Current Accuracy
±0.01% F.S.

Work Scenarios Simulated

Portable
Convenient to carry

High-precision measurement technology, multi-range support and dynamic working condition simulation, efficient data management and analysis.
High-precision measurement: the system has a measurement accuracy of up to 0.05% F.S. to ensure the accuracy of test data.
Multi-range support: adopting a 4-range measurement design, it supports test requirements for different current ranges, with a minimum pulse width of up to 500 ms.
Dynamic working condition simulation: it can simulate the actual driving conditions of electric vehicles with dynamic power or current waveforms, suitable for the working condition simulation test of power batteries.
Efficient data management: it supports the download of working conditions with up to 1,000,000 rows, facilitating the storage and analysis of test data.
Comprehensive testing: it supports DCIR testing (battery internal resistance testing), dQ/dV differential capacity curve analysis, pulse simulation testing, rate charge and discharge testing, and cycle life testing.
Function upgraded,experience elevated: portable battery testing solution with Type-C power interface,newly added CV and EIS testing functions to meet electrochemical testing requirements.
*CT/CE: Battery charging-discharging test system. "E" indicates that this equipment is equipped with energy feedback function.

Cyclic Voltammetry (CV) is an electrochemical technique that studies electrochemical reactions by applying a linearly scanned voltage to the electrode and recording the corresponding current response.

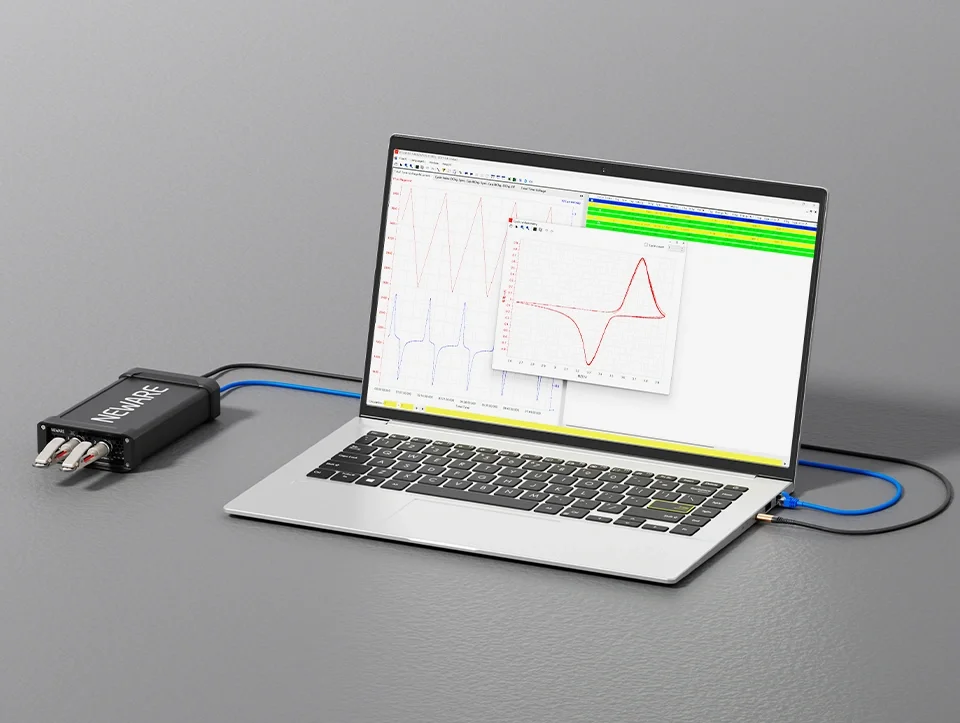

NEWARE battery testing system now supports CV measurements.
CV testing seamlessly integrates with charge-discharge testing without the need to move the battery.
CV steps can be combined with charge-discharge cycles, allowing flexible adjustment of testing workflows.
High-precision voltage and current control deliver exceptional accuracy and reliability for CV testing.
A high sampling rate facilitates increased data collection, thereby providing more comprehensive CV test information.
